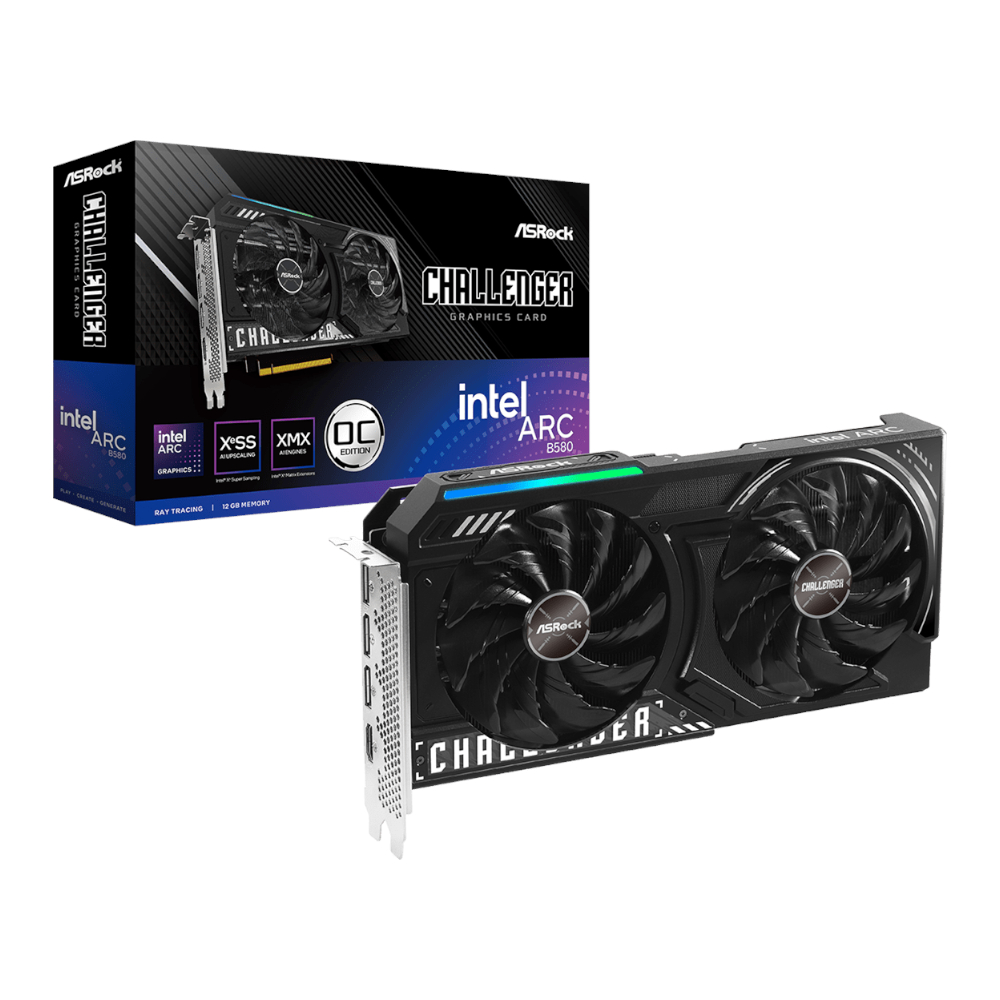

The ASRock Intel Arc B580 Challenger OC 12GB GDDR6 Graphics Card delivers a perfect balance of performance, cooling, and aesthetics. Designed for gamers and creators, this card combines powerful Intel® Arc™ B580 Graphics with a sleek design that features a stylish metal backplate. The Phantom Gaming look not only adds visual appeal but also reinforces the card’s construction. Additionally, a thermal pad on the backplate enhances heat dissipation, contributing to its overall efficiency during demanding tasks.

Optimized cooling is a key highlight of the B580 Challenger. The dual-fan design features ASRock’s custom Striped Axial Fan, which improves airflow using a stripe structure on the fan blades and a polished surface on the bottom side. These fans spin up under heavy loads to maintain optimal cooling and stop when temperatures drop for silent operation. The card’s heat pipes are designed to maximize contact with the GPU baseplate and stacked fins, efficiently transferring heat away from critical components.

ASRock has also integrated thoughtful engineering to improve thermal performance. The use of precise screw torque during assembly ensures optimal cooler mounting pressure, enhancing heat dissipation while protecting the GPU die. The innovative gap isolation between the heat pipes and stacked fins further boosts cooling efficiency, allowing the card to handle intense workloads with ease. A multi-colour LED indicator adds a touch of personalization, making the graphics card visually appealing in any setup.

Packed with cutting-edge features, the ASRock Intel Arc B580 Challenger OC boasts 12GB of 192-bit GDDR6 memory and an engine clock of up to 2740MHz. Built on Intel® Xe2-HPG Architecture, it supports advanced technologies like Intel® XeSS 2 for AI-driven upscaling and DirectX 12 Ultimate for stunning visuals. With support for resolutions up to 7680 x 4320 and multiple connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this card delivers exceptional performance for gaming and creative applications. Its robust build, efficient cooling, and sleek design make it a reliable choice for high-performance systems.

FEATURES:

Base Clock: Up to 2740MHz / 19Gbps
12GB 192-bit GDDR6
Intel® Arc™ B580 Graphics
Intel^® X^e2-HPG Architecture
Intel^® X^e Super Sampling 2 (Intel^® X^eSS 2)
Intel^® X^e Matrix eXtentions (Intel^® XMX)
PCI® Express 4.0 support
Dual-Fan Design
Striped Axial Fan
Stylish Metal Backplate

SPECIFICATIONS:

Graphics Engine: Intel^® Arc B580
Bus Standard: PCI® Express 4.0 x 8
DirectX: 12 Ultimate
OpenGL: 4.6
Memory: 12GB GDDR6
Engine Clock: 2740 MHz
Intel® XMX Engines: 160
Compute Units: 20
Memory Clock: 19Gbps
Memory Interface: 192-bit
Resolution: Digital Max Resolution: 7680 x 4320
Interface: 1 x HDMI™ 2.1a, 1 x DisplayPort™ 2.1 up to UHBR 13.5, 2 x DisplayPort™ 2.1 up to UHBR 10
HDCP: Yes
Multi-view: 4
Recommended PSU: 650W
Power Connector: 1 x 8-pin
Colour: Black
Product Dimensions: 24.9 x 13.2 x 4.1 cm
Product Weight: 720g

WHAT’S IN THE BOX:

ASRock Intel Arc B580 Challenger OC 12GB GDDR6 192-BIT Graphics Card – Black x1
Quick Install Guide x1
