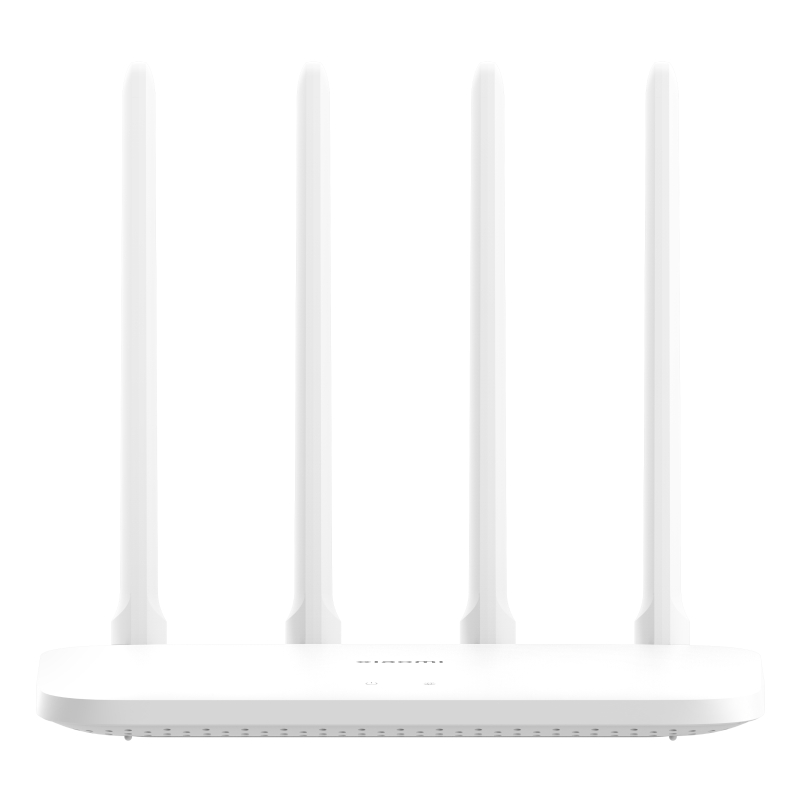

With the Xiaomi Dual Band AC1200 Router, you can enjoy a wireless dual band speed of 1167 Mbps for a faster and smoother online experience. The Xiaomi Router supports Smart Join, which combines the 2.4GHz and 5GHz bands into a single Wi-Fi name. This eliminates uncertainty about which Wi-Fi network to join. The 2.4GHz band delivers better performance through walls, while the 5GHz band provides faster speeds. A dual-band terminal chooses the best frequency band automatically.

4 precision-tested external omnidirectional antennas with a carefully designed internal structure and configuration significantly enhance transmission performance, especially in complicated situations. A carefully prepared metal substrate is coupled with nanomaterials with superior thermal radiation properties. It has high heat absorption and heat dissipation properties, allowing it to effectively lower chip temperature and increase system stability. The Xiaomi Router includes a large 128 MB of memory, which ensures data transfer stability and connectivity of each access device.

FEATURES:

4 External Antennas
Dual-Core CPU
Large 128 MB memory for stable connection of 64 devices
Control remotely via the Mi Home App
Unauthorised access prevention
Parental Control

SPECIFICATIONS:

CPU: MT7621AT MIPS dual-core 880MHz
ROM: 16MB
RAM: 128MB
2.4GHz Wi-Fi: 2×2 (supports the IEEE 802.11a/b/g/n/ac, 802.3/3u protocol, maximum possible speed of 300Mbps)
5GHz Wi-Fi: 2×2 (supports the IEEE 802.11a/b/g/n/ac, 802.3/3u protocol, maximum possible speed of 867Mbps)
Product antennas: 4 external omnidirectional antennas (two 2.4GHz antennas with maximum gain of 5dBi; two 5GHz antennas with maximum gain of 6dBi)
Product heat dissipation: Natural heat dissipation
Total interfaces: Two 10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX), One 10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)
LED indicator lights: 2
System reset buttons: 1
Power input interface: 1
Protocol standards: IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
Certification standards: GB9254-2008, YD/T993-1998 GB4943.1-2011
Dual band: 2.4GHz and 5GHz
Operating system: Mi Wi-Fi ROM intelligent router operating system based on a highly customised version of OpenWRT
Wireless security: WPA-PSK/WPA-PSK2 encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorised access prevention
Management Application: Supports web, Android, and iOS
Product Dimensions: 19 x 10 x 17.5 cm

WHAT’S IN THE BOX:

Xiaomi AC1200 Dual Band Router 4A – White x1
Power Adapter x1
User Manual x1
